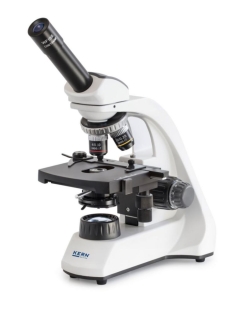

Light Microscopes Educational-Line OBTThe fully equipped all-round compound microscope for school, training and laboratories. - Monocular and Binocular
- Widefield Eyepiece: WF 10x/18 mm
- Diopter adjustment one-sided (for binocular models)
- Coarse and fine focussing on both sides
- OBT 101: simple 0.65 condenser lens with adjustable aperture diaphragm, triple nosepiece
- OBT 102 - 106: Abbe 1,25 condensor focussed with aperture diaphragm, quadruple nosepiece
- Dimmable 1 W LED illumination
- Dust Cover and manual instruction included
- Optionally available are various color filters, as well as eyepieces with pointer needle or 0.1 mm scale
| Inclination
angle tube: | 45° | | Type of illumination: | Transmitted light | | Light type: | LED | | Dimensions (WxDxH): | 195 x 147 x 325 mm | | Weight: | 2.5 kg | | Power supply: | 230 V, 50 Hz |
| |
|
XItem added to basket. Light Microscopes Educational-Line OBT | Type | Tube | Revolving nosepiece | Magnification
objectives | Condenser | PK | Cat. No. | in Stock | Manuf. Prod. No. | |
|---|
| OBT 101 | Monocular | 3-fold | 4x, 10x, 40x | 0,65 | 1 | 4670973 |  | OBT 101 |  | | OBT 102 | Monocular | 4-fold | 4x, 10x, 40x | Abbe 1,25 | 1 | 4670974 | | OBT 102 | | | OBT 103 | Monocular | 4-fold | 4x, 10x, 40x | Abbe 1,25 | 1 | 4670975 | | OBT 103 | | | OBT 104 | Binocular | 4-fold | 4x, 10x, 40x | Abbe 1,25 | 1 | 4670976 | | OBT 104 | | | OBT 105 | Monocular | 4-fold | 4x, 10x, 40x, 100x | Abbe 1,25 | 1 | 4670977 | | OBT 105 | | | OBT 106 | Binocular | 4-fold | 4x, 10x, 40x, 100x | Abbe 1,25 | 1 | 4670978 | | OBT 106 | |
|
